Description

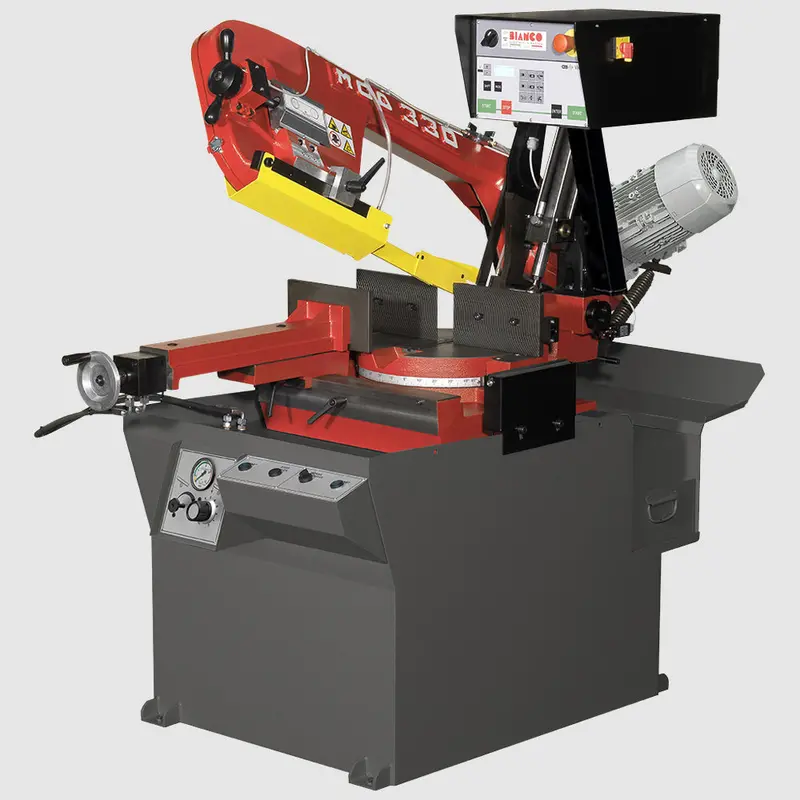

Semiautomatic band saw machine with cutting capacities up to 60° right
Semiautomatic band saw machine equipped with bow and vice movement at hydraulic control, automatic fast up/down bow movement controlled by feeler pin and cutting progress with infinitesimal adjustment. The bow cylinder is situated in the back side of the machine. The machine has double safety button for cycle start and low voltage electrical system according to EC rules.
FEATURES
- Bow cylinder situated in the back side of the machine
- Cutting capacities up to 60° right
- Bow: red RAL 3002, base: gray RAL 7022
AVAILABLE WITH CONTROL HIGH PANEL ”A” OR LOW PANEL ”B”.
THE OPTIONAL ”I” (FREQUENCY CONVERTER) CAN BE SUPPLIED ONLY WITH ”A” PANEL.
THE OPTIONAL ”V” (BLADE SPEED VARIATOR) CAN BE SUPPLIED ONLY WITH ”B” PANEL.
STANDARD ACCESSORIES
- Millimetre rule 0-500 mm with mechanical length stop
- Discharge tray
- Cleaning brush
Download technical features
| 90° mm | 260 | 240 | 330×120 |
| 45° mm | 200 | 190 | 200×130 |
| 60° mm | 120 | 115 | 120×100 |
| Blade | 3010x27x0.9 | ||
