Description

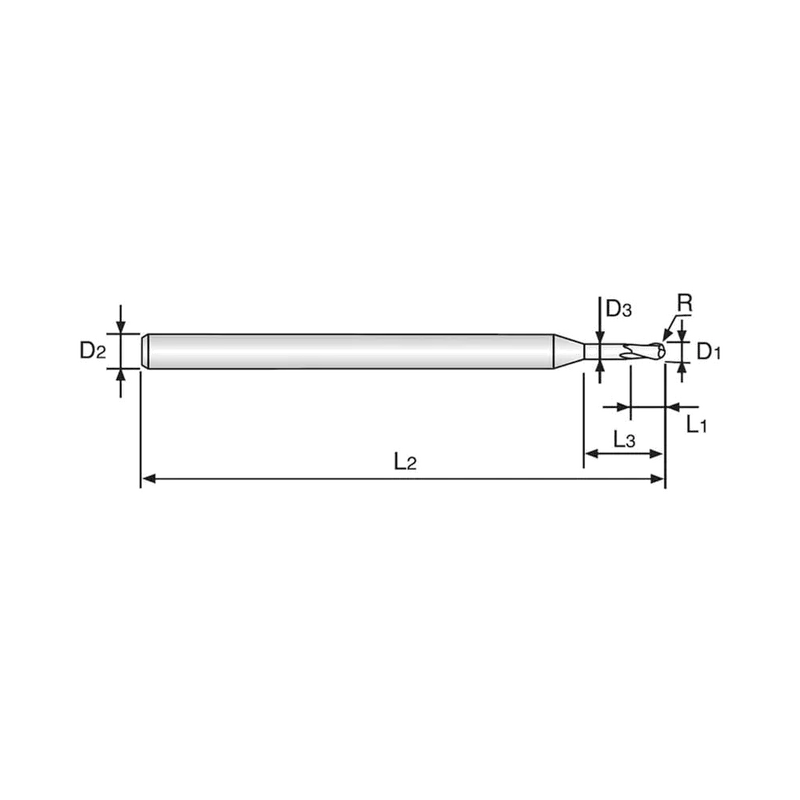

The YG-1 EI997 series D-Power diamond coated micrograin carbide cutters has 2 flutes and a plain shank. These minature slot drills have a reduced neck and a ball nosed end for machining radii. These range in diameter from 0.2mm-6mm. The D-Power range is the first choice for the high performance machining of graphite. It is also suitable for machining abrasive aluminium, plastics, brass, copper, CFRP and GFRP composites.
- First choice for high performance machining of graphite with extreme wear resistance.
- Excellent performance in abrasive non-ferrous materials.
- Diamond coating has high lubricity and low coefficient of friction, preventing the tool from fast wear common in abrasive material machining.
- Long Length Minature Ball Nosed geometry with radius tolerance ± 0.01mm
- Suitable for high accuracy machining.
- Smooth and excellent surface finish on graphite.
- Also suitable for high speed machining of Wrought Aluminium, Bakelite, Plastics, Wood, Brass and non-ferrous metals.
Specifications
| Flutes | 2 |
| Helix Angle | 30° |
| Cutting Edge Shape | BALL NOSE |
| Size Min | R0.1 |
| Size Max | R3.0 |
| Length |
MINIATURE NECK |
| Coating | Diamond |
