Description

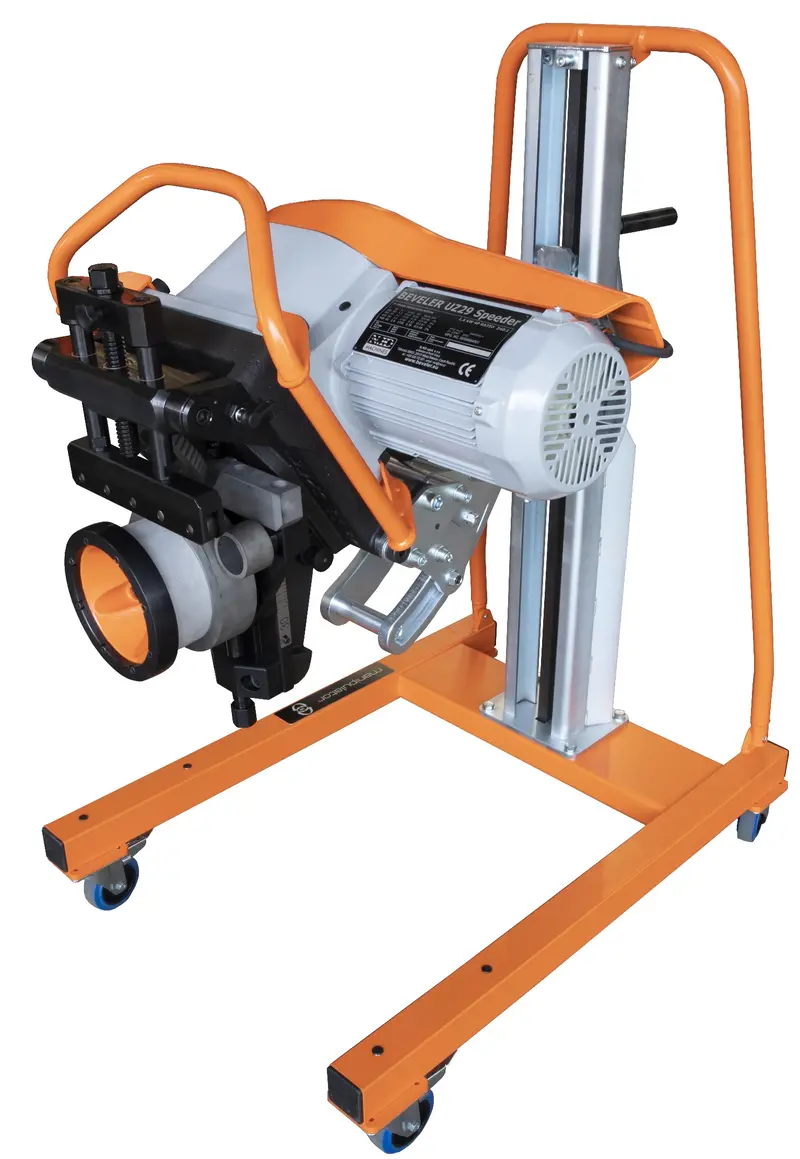

The KA 29 handles heavy beveling jobs without flinching. Automatic feed keeps movement steady while the 3D manipulator lets you adapt on the fly—whether the workpiece is small or the floor’s uneven. Flip the unit upside down for fast X or K weld preps without shifting the material. It cuts conventional and stainless steel cleanly and stays quiet while doing it.
- Max bevel width: 29 mm under 400 MPa
- Double-sided bevel without material handling
- Works stationary or mobile
- Adjustable angle with swap-out arm kits
- One operator is all you need
User manual Chart for bevel setting 37.5 deg Catalogue sheet
Watch Video Watch Video
Specifications
Max. bevel width:
0 to 29 mm / 0 to 1.14 in < 400 MPa / 58 015 PSI
0 to 25 mm [≈ 1 inch] / 0 to 1 in > 400 MPa /58 015 PSI
Bevel angle:
30°; 45°; 22,5°; 37,5°; 50° (replaceable KIT)
The thickness of the bevel. material:
6 – 60 mm / 0.23 to 2.36 in
Motor: 1500 W
Feed rate:
1,8 m/min. / 6 ft/min.
Weight:
205 kg / 452 lb
Dimensions:
1010 x 745 x 1326 mm
39.76 x 29.33 x 52.2 in
| Machine name: | 400V – 3phase | 480V – 3phase | 220V – 3phase |
| KA 29 Auto Beveler – KIT 30° + 45° |
1962 | 1903 | 1907 |
| Accessories: | Art.Nr. |
| ECO cutting tool – suitable for conventional steel |
1970 |
| ECO cutting tool – suitable for conventional steel – 2+1 free set |
1972 |
| PVD cutting tool – suitable for tougher materials |
1971 |
| PVD cutting tool – suitable for tougher materials – 2+1 free set |
1973 |
| Separate KIT 22,5° | 1966 |
| Separate KIT 30° | 1964 |
| Separate KIT 37,5° | 1967 |
| Separate KIT 45° | 1965 |
| Separate KIT 50° | 1968 |
| Mag Brush Maxx Large – magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in | NMF0107 |
