Description

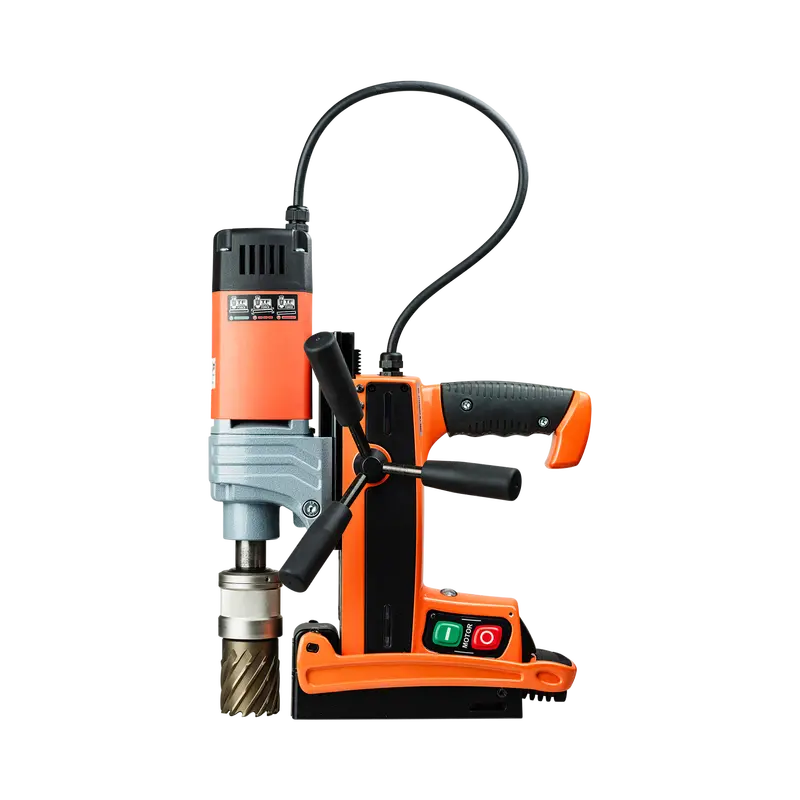

Magnex Drill 40 features a powerful permanent magnet, ideal for a wide range of steel with a minimum thickness of 1.6mm, that requires no power supply. It’s also wonderfully lightweight and compact, fitting 19mm Weldon shanks, and has double dove-tailed height adjustment for drill chucks.
- Powerful permanent magnet – doesn’t need a power supply
- Very light and compact at only 9.9kg
- Height adjustable slide enables an increased range of applications including standard twist drills
- Suits 19mm Weldon shanks
- Solid brass guides with spring loading for rigid gliding and no vibration
Specifications
| Drill Features and Specifications | |
 |
|
| Core Drill Dimensions | 12.0-40.0mm |
| Cutting Depth | 50.0mm |
| Twist Drill |
1.0-13.0mm |
| Counter-Boring |
10.0-40.0mm |
| Arbors |
19mm Weldon |
| Stroke |
105mm |
| Height Adjustment |
80mm |
| Gearbox-On-Load Speed |
450rpm |
| Power Consumption |
1,100W |
| Voltage |
230V 50/60Hz |
| Tool Force (10mm)/Magnetic Adhesion Strength |
2,800N/17,000N |
| Tool Force (6mm S235) |
2,300N |
| Magnetic Base |
72×190mm |
| Weight |
9.9Kg |
